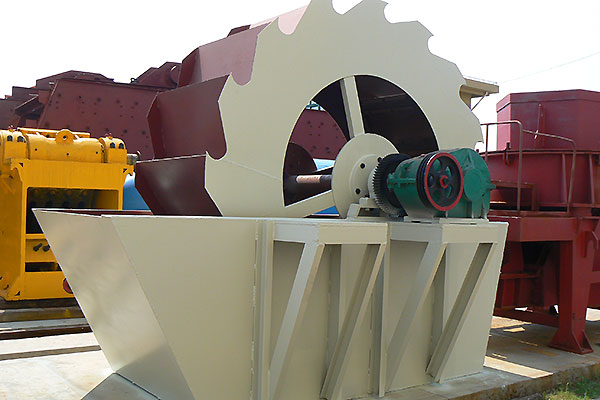

Wheel type Sand Washing Machine
- Brand Name:
- Place of Origin: China
- APPLICATIONS: Mining, quarrying, metallurgy, building material, highway, railway and chemical industry.
- Business Type: Manufacturer, Trading Company
Processed Materials:
crushed stone, pebble stone, river stone, etc
Introduction
Sand/Stone Wet Washing Machine which is also known as stone washing machine is used to the removal of impurities (such as dust) and is also called sand washing machine because of the greater usage of the method of washing. Sand/Stone Wet Washing Machine is used for desliming in construction sites, sand and mineral processing plants, hydroelectric plants, precast plants, ore dressing plant, etc., can also be used for ore separation operation.
Performance
1. Simple structure, stable operation.
2. Bearing and water, materials separately, to avoid the machine prematurely due to pollution rust caused damage phenomenon.
3. Applicable to a wide variety of working environment.
4. Less loss of washable material, washing of high efficiency and high-grade materials, can fully meet the requirements.
5. Relatively long service life, and almost no wearing parts.
6. In need of repair in rare cases, it can greatly reduce the cost of.
Global Case
Specification
| Model | Diameters of The Wheel Bucket(mm) | Speed of Rotor (r/min) | Feed Opening Size (mm) | Capacity (t/h) | Motor Power (kw) | Overall Dimensions (L×W×H)(mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| XS2600(I) | 2600 | 2.5 | ≤10 | 20-50 | 5.5 | 3515×2070×2672 | 2500 |
| XS2600(II) | 2600 | 2.5 | ≤10 | 30-70 | 5.5 | 3515×2270×2672 | 2900 |
| XS2800 | 2800 | 1.2 | ≤10 | 50-100 | 7.5 | 3900×3300×2990 | 3980 |
| XS3200 | 3200 | 1 | ≤10 | 80-120 | 11 | 3965×4440×3410 | 7270 |
| XS3600 | 3600 | 1 | ≤10 | 120-180 | 15 | 4355×4505×3810 | 9430 |
