Belt Conveyor
- Brand Name:
- Place of Origin: China
- APPLICATIONS: Mining, quarrying, metallurgy, building material, highway, railway and chemical industry.
- Business Type: Manufacturer, Trading Company
Processed Materials:
Solid material, mineral ore, crushed stone, etc
Introduction
The convery belt is mainly composed by the expansion cylinder on both ends and the closed belts tightly knotted on them. The revolving cylinder of the conveyor belt is called driving cylinder, and the other cylinder which is mainly used for changing the moving direction of the belt is called redirection cylinder. The driving cylinder drive the device through the electromotor on the reducer, and the belt pulls relying on the friction of the driving cylinder and the conveyor belt. The driving cylinder is usually installed on the materials discharging side for purpose of increasing the pulling force. The materials are fed from the feeding end, and then they will fall on the revolving conveyor belt, and relying on the friction force of the belt conveyor, the conveying materials are driven to the material discharging end for discharging.
Performance
1.High capacity.
2.Standard parts.Simple structure.
3.Easy Maintenance .
4.Easy to operate.
5.The length of the belt is customized.

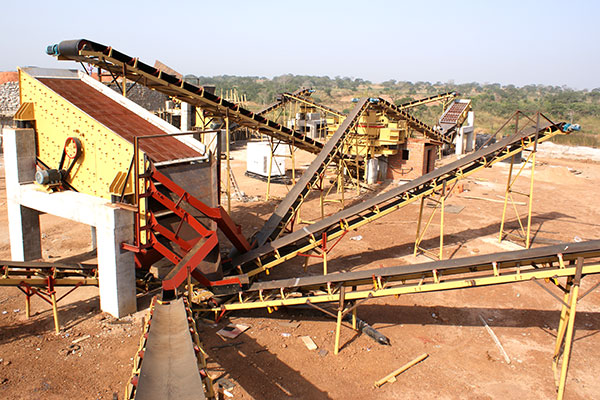

Global Case
Specification
| Width(mm) | Length(m)/Power(kw) | Speed(m/s) | Capacity(t/h) | ||
|---|---|---|---|---|---|
| 400 | ≤12/2.2 | 12~20 /2.2~4 | 20~25/3.5~7.5 | 1.25~2.0 | 30~60 |
| 500 | ≤12/3 | 12~20/3~5.5 | 20~30/5.5~7.5 | 1.25~2.0 | 40~80 |
| 650 | ≤12/4 | 12~20/4~5.5 | 20~30/5.5~11 | 1.25~2.0 | 80~120 |
| 800 | ≤10/4 | 10~15/4~5.5 | 15~30/5.5~15 | 1.25~2.0 | 120~200 |
| 1000 | ≤10/5.5 | 10~20/5.5~11 | 20~40/11~22 | 1.25~2.0 | 200~320 |
| 1200 | ≤10/7.5 | 10~20/7.5~15 | 20~40/15~30 | 1.25~2.0 | 290~480 |
