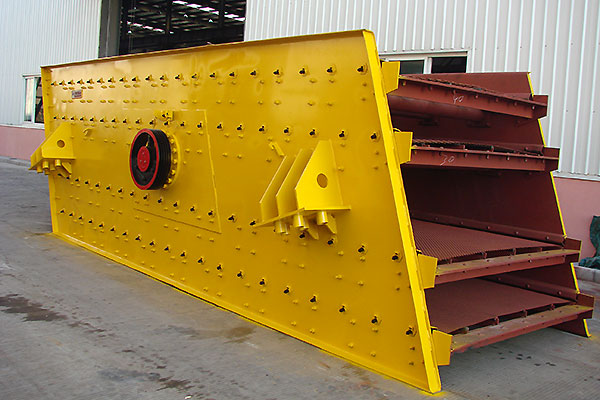

Circular Vibrating Screen
- Brand Name:
- Place of Origin: China
- APPLICATIONS: Mining, quarrying, metallurgy, building material, highway, railway and chemical industry.
- Business Type: Manufacturer, Trading Company
Processed Materials:
crushed stone, pebble stone, river stone, etc
Introduction
Circular vibrating screen is a kind of doing a circular vibrating, numerous layers and high efficiency vibrating screen. Round vibrating screen takes a cylinder type eccentric shaft vibration exciter and partial block to adjust the amplitude, material sieve drip line, which has the advantage of reliable structure, strong exciting force, high screen efficiency, low noise, durable usage, easy maintenance and security for the mining operator and which also can be used in the classifying of the products such as mining, building material, transportation, energy saving and chemical industry.
Performance
1. Circular vibrating screen adopts cylinder eccentric shaft vibration exciter and partial block to adjust the amplitude, and easy maintenance.
2. Circular vibrating screen spring steel woven mesh or punching sieve, long service life, is not easy to stop up the hole.
3. Circular vibrating screen with rubber isolation spring, long life, low noise, and smooth over the resonance region.
Global Case
Specification
| Product Model | Screen Deck | Installation Slope(°) |
Deck Size (m2) |
Vibrating Frequency (r/min) |
Double Amplitude (mm) |
Capacity(m3/h) |
Mortor Power (kw) |
Overall Dimensions (L×W×H) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 2YK1224 | 2 | 15 | 2.88 | 970 | 6-8 | 20-120 | 5.5 | 2673×2382×2027 | 1750 |
| YK1235 | 1 | 15 | 4.2 | 970 | 6-8 | 20-150 | 5.5 | 3710×2464×1450 | 1729 |
| 2YK1235 | 2 | 15 | 4.2 | 970 | 6-8 | 20-150 | 7.5 | 3705×2393×2339 | 2476 |
| 3YK1235 | 3 | 15 | 4.2 | 970 | 6-8 | 20-150 | 7.5 | 3621×2521×2581 | 3158 |
| 4YK1235 | 4 | 15 | 4.2 | 970 | 6-8 | 20-150 | 11 | 3510×2521×2830 | 4160 |
| YK1545 | 1 | 17.5 | 6.75 | 970 | 6-8 | 22-150 | 11 | 4904×3044×2179 | 3319 |
| 2YK1545 | 2 | 17.5 | 6.75 | 970 | 6-8 | 22-150 | 15 | 5042×3090×3165 | 5308 |
| 3YK1545 | 3 | 17.5 | 6.75 | 970 | 6-8 | 22-150 | 15 | 4972×3090×3395 | 5915 |
| 4YK1545 | 4 | 17.5 | 6.75 | 970 | 6-8 | 22-150 | 18.5 | 4915×3155×3804 | 7260 |
| YK1548 | 1 | 17.5 | 7.2 | 970 | 6-8 | 22-150 | 11 | 5190×3044×2186 | 3319 |
| 2YK1548 | 2 | 17.5 | 7.2 | 970 | 6-8 | 22-150 | 15 | 5265×3140×3208 | 5284 |
| 3YK1548 | 3 | 17.5 | 7.2 | 970 | 6-8 | 22-150 | 15 | 5200×3090×3440 | 6186 |
| 4YK1548 | 4 | 17.5 | 7.2 | 970 | 6-8 | 22-150 | 18.5 | 5200×3155×3849 | 7284 |
| YK1860 | 1 | 20 | 10.8 | 970 | 6-8 | 32-350 | 15 | 6302×3365×2992 | 4651 |
| 2YK1860 | 2 | 20 | 10.8 | 970 | 6-8 | 32-350 | 18.5 | 6020×3455×3756 | 6195 |
| 3YK1860 | 3 | 20 | 10.8 | 970 | 6-8 | 32-350 | 18.5 | 6020×3455×4180 | 7613 |
| 4YK1860 | 4 | 20 | 10.8 | 970 | 6-8 | 32-350 | 22 | 5963×3505×4463 | 8650 |
| YK2160 | 1 | 20 | 12.6 | 970 | 6-8 | 66-720 | 18.5 | 6302×3730×2992 | 4917 |
| 2YK2160 | 2 | 20 | 12.6 | 970 | 6-8 | 66-720 | 22 | 5966×3958×3975 | 6856 |
| 3YK2160 | 3 | 20 | 12.6 | 970 | 6-8 | 66-720 | 30 | 5966×3958×4400 | 9112 |
| 4YK2160 | 4 | 20 | 12.6 | 970 | 6-8 | 66-720 | 30 | 5966×3958×4780 | 11405 |
| YK2460 | 1 | 20 | 14.4 | 970 | 6-8 | 75-750 | 18.5 | 6302×4155×2992 | 5243 |
| 2YK2460 | 2 | 20 | 14.4 | 970 | 6-8 | 75-750 | 30 | 6027×4308×3975 | 8503 |
| 3YK2460 | 3 | 20 | 14.4 | 840 | 6-8 | 75-750 | 30 | 6027×4308×4400 | 10411 |
| 4YK2460 | 4 | 20 | 14.4 | 840 | 6-8 | 75-750 | 30 | 5966×4308×4780 | 12068 |
| YK2475 | 1 | 20 | 18 | 840 | 6-8 | 120-900 | 22 | 7715×4115×3555 | 7230 |
| 2YK2475 | 2 | 20 | 18 | 840 | 6-8 | 120-900 | 30 | 7812×4308×4642 | 10709 |
| 3YK2475 | 3 | 20 | 18 | 840 | 6-8 | 120-900 | 37 | 7718×4393×5033 | 13400 |
| 4YK2475 | 4 | 20 | 18 | 840 | 6-8 | 120-900 | 45 | 7718×4494×5361 | 15500 |
| YK3060 | 1 | 20 | 18 | 840 | 6-8 | 200-900 | 30 | 6302×4943×3108 | 14052 |
| 2YK3060 | 2 | 20 | 18 | 840 | 6-8 | 200-900 | 37 | 6207×4943×3985 | 17185 |
| 3YK3060 | 3 | 20 | 18 | 840 | 6-8 | 200-900 | 45 | 6207×4943×4485 | 19200 |
| 4YK3060 | 4 | 20 | 18 | 840 | 6-8 | 200-900 | 45 | 6207×4943×4785 | 21080 |
| YK3075 | 1 | 20 | 22.5 | 840 | 6-8 | 840-1080 | 37 | 7716×5100×4217 | 16790 |
| 2YK3075 | 2 | 20 | 22.5 | 840 | 6-8 | 840-1080 | 45 | 7721×5110×4729 | 17840 |
| 3YK3075 | 3 | 20 | 22.5 | 840 | 6-8 | 840-1080 | 45 | 7724×5156×5229 | 18700 |
| 4YK3075 | 4 | 20 | 22.5 | 840 | 6-8 | 840-1080 | 2×30 | 7728×5170×5367 | 21700 |
