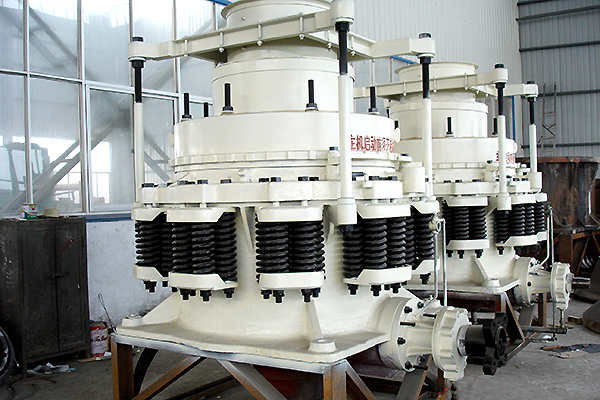

Spring Cone Crusher
- Brand Name:
- Place of Origin: China
- APPLICATIONS: Mining, quarrying, metallurgy, building material, highway, railway and chemical industry.
- Business Type: Manufacturer, Trading Company
Processed Materials:
Iron ore, copper ore, gold ore, manganese ore, river stone, gravel, granite, basalt, mine ore, quartz, diabase, etc. (for hard stone).
Introduction
Adopting the latest technological development, PY Series spring cone crusher is suitable for hard and mid-hard rocks and ores like iron ore, copper, limestone, quartz and granite, etc. PY Series spring cone crushers are the ultimate solution for the secondary crushing to achieve uniform product size of hard rocks, ores and minerals.
Comparing with other kinds of crushers, PY Series spring cone crusher is quite excellent in hard material crushing and the final product has good sharp. The innovations like stable lubrication system and excellent sealing system evidently reduce the production cost, helping you to achieve the highest level of profitability.
Performance
1.Higher capacity and less wear costs.
2.Wide range of application suitability.
3.Easy to maintain, reduce the downtime and maintenance costs.
4.Stable running performance and easy operation.
5.Stable bevel wheel transmission device
6.Balanced runout rotation ensures best capacity.
7.Proper operation, continuously loading until the machine shuts down as scheduled.
Global Case
Specification
| Model | Moving Cone Diameter(mm) | Feeding Size (mm) | Max Feed Edge(mm) | Discharge Range (mm) | Capacity (t/h) | Motor (kw) |
|---|---|---|---|---|---|---|
| PYB600 | Φ600 | 75 | 65 | 12-15 | 40 | 30 |
| PYD600 | Φ600 | 40 | 35 | 3-13 | 12-23 | 30 |
| PYB900 | Φ900 | 135 | 115 | 15-50 | 50-90 | 55 |
| PYZ900 | Φ900 | 70 | 60 | 5-20 | 20-65 | 55 |
| PYD900 | Φ1200 | 50 | 50 | 3-13 | 15-50 | 55 |
| PYB1200 | Φ1200 | 170 | 145 | 20-50 | 110-168 | 110 |
| PYZ1200 | Φ1200 | 115 | 100 | 8-25 | 42-135 | 110 |
| PYD1200 | Φ1200 | 60 | 50 | 3-15 | 18-105 | 110 |
| PYB1750 | Φ1750 | 250 | 215 | 25-50 | 280-480 | 160 |
| PYZ1750 | Φ1750 | 215 | 185 | 10-30 | 115-320 | 160 |
| PYZ1750 | Φ1750 | 100 | 85 | 5-13 | 75-230 | 160 |
| PYB2200 | Φ2200 | 350 | 300 | 30-60 | 590-1000 | 280/260 |
| PYB2200 | Φ2200 | 275 | 230 | 10-30 | 2000-580 | 280/260 |
| PYD2200 | Φ2200 | 130 | 100 | 5-15 | 120-340 | 280/260 |
