Mobile Jaw Crusher
- Brand Name:
- Place of Origin: China
- APPLICATIONS: Mining, quarrying, metallurgy, building material, highway, railway and chemical industry.
- Business Type: Manufacturer, Trading Company
Processed Materials:
River pebble, limestone, granite, basalt, quartz,diabase, andesite, gravel, mineral, etc.
Introduction

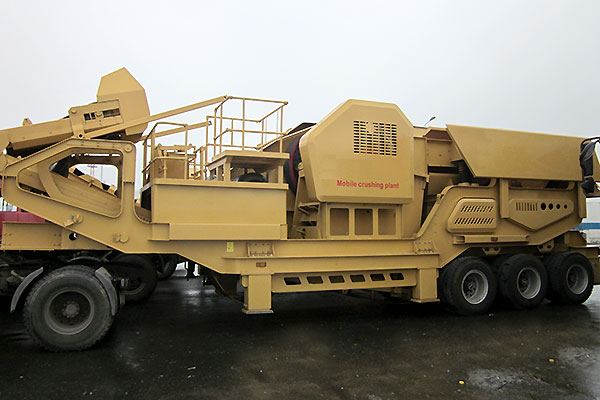

Jaw type Mobile Crushing Plant which is also called tyre moblile jaw crusher and wheel mobile jaw crusher, is equipped with a high-property jaw crusher, vehicle-mounted feeder and high-intensity vibrating screen. It has several advantages such as short length, light weight, strong mobility, better adaptability, less material transportation cost and flexible combination. Either crushing or sand making, its concept is fully adapted to various situations of the mobile crushing machine, eliminating operation barriers caused by venues, environment and configuration as well as providing customers with simple, efficient and low-cost crushing equipment. It is mainly used in industries which often require the removal of materials during their processing, such as metallurgy, chemical, construction materials, water and electricity industries. Especially for highways, railways, hydropower projects and other mobile crushing of stones, customers can adopt a variety of configuration modes according to the type, size of raw materials and processing requirements of finished goods. Jaw type Mobile Crushing Plant greatly expands the field of coarse crushing operation.
Performance
1. It is widely used in venue operations such as mining, coal, recycling of construction waste, earthwork, urban infrastructure, roads or construction sites.
2. It can deal with the top soil and a variety of other materials, separate viscous coagulation aggregates and screen after crushing in construction, demolition and quarrying industries.
3. Artificial sand made from river pebbles, rocks (limestone, granite, basalt, diabase, andesite, etc.), ore tailings and stone chips.
Global Case
Specification
| Model | MP4060PE | MP5075PE | MP6090PE | MP75106PE | MP87106PE | MP90120PE | |
|---|---|---|---|---|---|---|---|
|
Transport Dimension |
Length(mm) | 8700 | 9326 | 10700 | 12500 | 12460 | 14450 |
| Width(mm) | 2490 | 2490 | 2780 | 2900 | 3120 | 3000 | |
| Height(mm) | 3895 | 4125 | 3840 | 4450 | 4440 | 4800 | |
| Weight(t) | 17.4 | 27 | 35.4 | 60 | 60 | 82 | |
| Axle Weight(t) | 8.1 | 16 | 25 | 40.5 | 41.3 | 52 | |
| King Pin Weight(t) | 50/9.3 | 50/11 | 50/10.4 | 90/19.5 | 90/18.7 | 90/30 | |
| Jaw Crusher | Model | PE400X600 | PE500X7500 | PE600X900 | PE750X1060 | PE870X1060 | PE900X1200 |
|
Feed Opening (mm) |
400*600 | 500*750 | 600*900 | 750*1060 | 870*1060 | 900*1200 | |
| Maximum Feed Size | 340 | 425 | 500 | 630 | 750 | 780 | |
|
Setting Range (c.s.s) (mm) |
40-100 | 50-100 | 65-180 | 80-180 | 170-270 | 95-225 | |
| Capacity(m3/h) | 10-35 | 25-60 | 30-80 | 72-150 | 145-235 | 170-250 | |
| Feeder | Model | GZT0724 | GZT0724 | GZT0932Y | ZSW490X110 | ZSW490X110 | ZSW600X1300 |
| Volume(m3) | 3.2 | 3.2 | 7.6 | 10 | 10 | 10 | |
| Width(mm) | 2200 | 2200 | 3150 | 3000 | 3000 | 3000 | |
| Belt Conveyor | Model | B600X5.8Y | B650X5.8Y | B1000X7.0Y | B1000X7.2Y | B1000X7.2Y | B1200X8.3Y |
| Side Belt (optional) | |||||||
| Model | B400X2.7Y | B500X2.7Y | B500X2.7Y | B500X2.7Y | B650X3.5Y | ||
| Separators (optional) | Model | RCYD-6.5 | RCYD-6.5 | RCYD-10 | RCYD-10 | RCYD-10 | RCYD-12 |
| Frame Axes | Number of Axes | 1 | 2 | 2 | 3 | 3 | 4 |
