Mobile Screen
- Brand Name:
- Place of Origin: China
- APPLICATIONS: Mining, quarrying, metallurgy, building material, highway, railway and chemical industry.
- Business Type: Manufacturer, Trading Company
Processed Materials:
River pebble, limestone, granite, basalt, quartz,diabase, andesite, gravel, mineral, etc.
Introduction
Mobile Screening Plant is a patented aggregate screening plant designed to screen rock, soils, sand & gravel and c & d materials producing three different sizes of product simultaneously. This heavy-duty machine features standard equipment . The Portable Screening Plant unique patented design allows feeding from three sides with a loader or excavator to accommodate any job site application.
Performance
The screens are all diesel-electric driven and are particularly suitable for combined operation with an upstream crusher.
The performance range for mobile screens nowadays extends to 1,000 t/h depending on the type and composition of the feed material and the grading ranges to be screened.
1.equipped with a high-performance screening box;
The performance range for mobile screens nowadays extends to 1,000 t/h depending on the type and composition of the feed material and the grading ranges to be screened.
1.equipped with a high-performance screening box;
2.automated screening exercise and conditioning, screening efficiency maximization;
3.the strict management of all operational units, improve product life and reliability;
4.low noise and low emission characteristics.

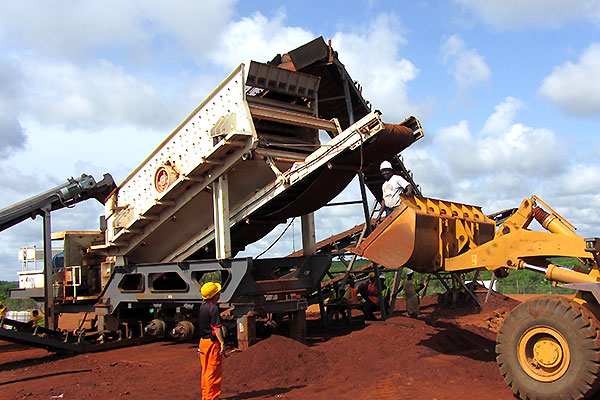

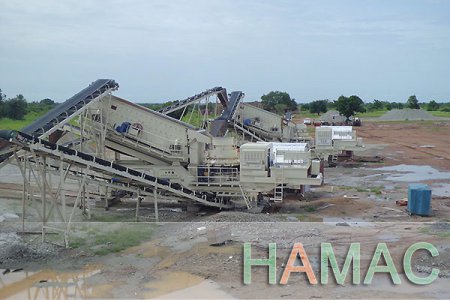

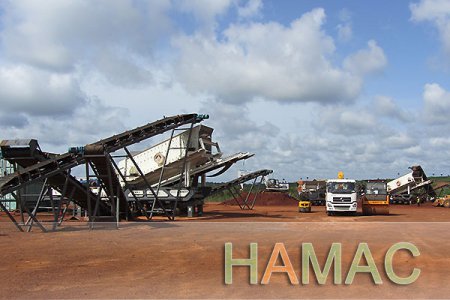

Global Case
Specification
| TP-S Mobile Screen Station | TP-S 152 | TP-S 153 | TP-S 181 | |
|---|---|---|---|---|
| Specification of Screen (mm×mm) | 1500×4500 | 1500×6100 | 1800×4800 | |
| Deck | 2or3 | 2or3 | 2or3 | |
| Power Plant | - | |||
| Engine | Cummins or CAT | Cummins or CAT | Cummins or CAT | |
| Power(kw) | 110 | 138 | 110 | |
| Hopper | - | |||
| Hopper Volume (m3) | 10 | 10 | 10 | |
| Running Gear | - | |||
| Drive Mode | hydraulic | hydraulic | hydraulic | |
| Dimension and Weight(t) | - | |||
| Dimension(working state) | - | |||
| Length (mm) | 16457 | 19800 | 16539 | |
| Width (mm) | 14282 | 17800 | 14327 | |
| Height(mm) | 4199 | 7300 | 4238 | |
| Dimension(transport state) | - | |||
| Length (mm) | 14840 | 19500 | 15130 | |
| Width (mm) | 2861 | 3300 | 3245 | |
| Height(mm) | 3461 | 3500 | 3574 | |
| Weight (t) | 26 | 39 | 29 | |
