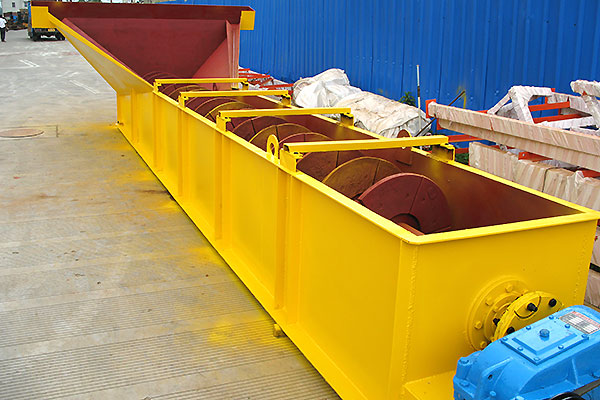

Screw type Sand Washing Machine
- Brand Name:
- Place of Origin: China
- APPLICATIONS: Mining, quarrying, metallurgy, building material, highway, railway and chemical industry.
- Business Type: Manufacturer, Trading Company
Processed Materials:
Screw sand washing machine is used in Mining, quarry, and construction, industries for various sands or stone classifying and dewatering.
Introduction
Screw sand washing machine is mainly used for sand processing, electric pole factory, building work site and concrete dam, various sands classifying and dewatering. This sand washing machine adopts inclination of 15º, under the water tub, three weir plates form the sediment pool, the screw head is immersed in this pool, the screw is driven by electric motor through reducer rotating continuously, the fresh water is feeding from porous plate at bottom of sediment pool, this machine have three functions of washing, dewatering, classifying.
Performance
1. Reasonable structure,
2. Large capacity,
3. Low consumption,
4. Little loss of the sand during the washing process,
5. Low failure rate.
Global Case
Specification
| Models | LSX-920 | 2LSX-920 | LSX-1120 | 2LSX-1120 |
| Diameter of screw (mm) | 920 | 920 | 1120 | 1120 |
| Length of tub (mm) | 7585 | 7585 | 9750 | 9750 |
| Feed Size (mm) | ≤10 | ≤10 | ≤10 | ≤10 |
| Capacity (t/h) | 100 | 200 | 175 | 350 |
| Speed of screw (r/min) | 21 | 21 | 17 | 17 |
| Electric Motor Power(kW) | 11 | 2x11 | 18.5 | 2x18.5 |
| Water Consumption (t/h) | 10-80 | 20-160 | 20-150 | 40-300 |
| Dimension (mm)(L×B×H) | 8420×2180×3960 | 8420×3970×3960 | 10770×3950×4860 | 10770×5260×4860 |
| Weight (t) | 6.2 | 11.5 | 10.9 | 17.8 |
Note: Any change of Screw Sand Washing Machine technical data shall not be advised additionally.
