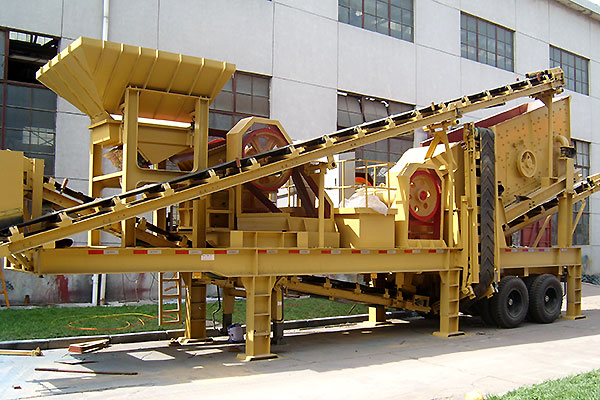

Multi-Combination Mobile Crusher

Brand Name: HAMAC BRAND
Place of Origin: China
APPLICATIONS: Mining, quarrying, metallurgy, building material, highway, railway and chemical industry.
Business Type: Manufacturer, Trading Company

Processed Materials:

River pebble, limestone, granite, basalt, quartz,diabase, andesite, gravel, mineral, etc.

inquiry!       Live a Message!

Introduction

Multi-combination mobile crusher is called wheel comprehensive mobile crusher, which is adaptable for different requirements of customers and various production conditions. We can provide a whole set of solutions targeted for all levels of crushing, screening and transportation, which are meticulously designed to achieve the perfect combination of configuration in order to meet the requirements of customers.

Performance

1. High-property crushing and screening equipment;
2. Vehicle-mounted cabinet and wireless remote control operation;
3. The perfect combination of jaw crusher, cone crusher, feeder machine and vibrating screen;
4. The integrated and modular installation of entrainment belt conveyor, vibrating screen, and crusher;
5. Car installation is supported, and it is convenient for equipment to station;
6. The traction steering shaft makes it easy for transportation and venues depth;
7. The Vehicle is equipped with dust facilities to ensure the protection of environment.

Global Case

Specification

Technical Data//Model Y3S23G93E46Y55B
Transportation Size (mm) 14700x2900x4350
Weight(t) 45
Tire Configuration Dual axial
Vibrating Feeder GZD 960x3800
Crusher 1 PE400x600
Crusher2 PYB900
Vibrating Screen 3YZS1237
Belt Conveyer AboveScreen B500x14m
Belt Conveyer Under Screen B650x6m
Main Belt Conveyer B650x9m
Side Belt Conveyer B500x4m / 2
Electric Control (standard) control box + control panel
Support Leg (standard) 4
